YEAR 2014 PRODUCT TRIM Series

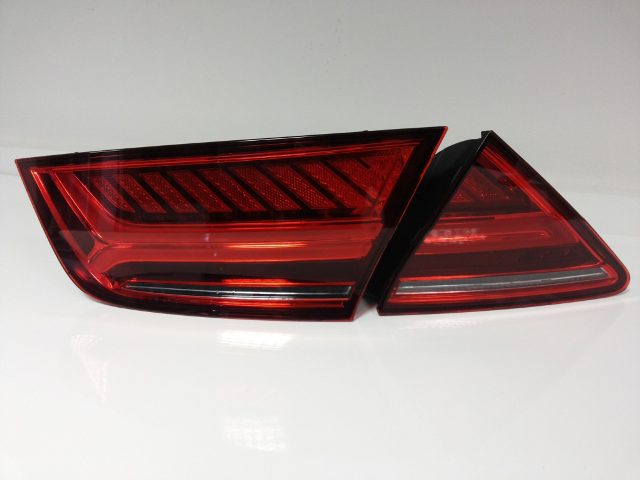

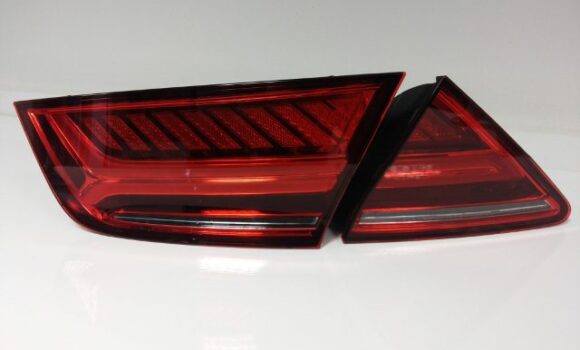

The complexity of the automotive market constantly requires new production strategies. Olsa, among the most important industries producing lighting equipment for cars and trucks, faced the ploblem adopting a 5-axis machining center model TRIM 2515 equipped with double bridge and rotary table. Olsa won his challange thanks to a flexible machine that guarantees a quick and accurate adaptation to a wide range of process and products.

HIGH ACCURACY AND SPEED

The key to success has been to equip the machining center with an automatic feeler system that ensures a precise centering of the workpiece and the two independent bridges that reduce the production time as the market requires.
Technical Specifications:

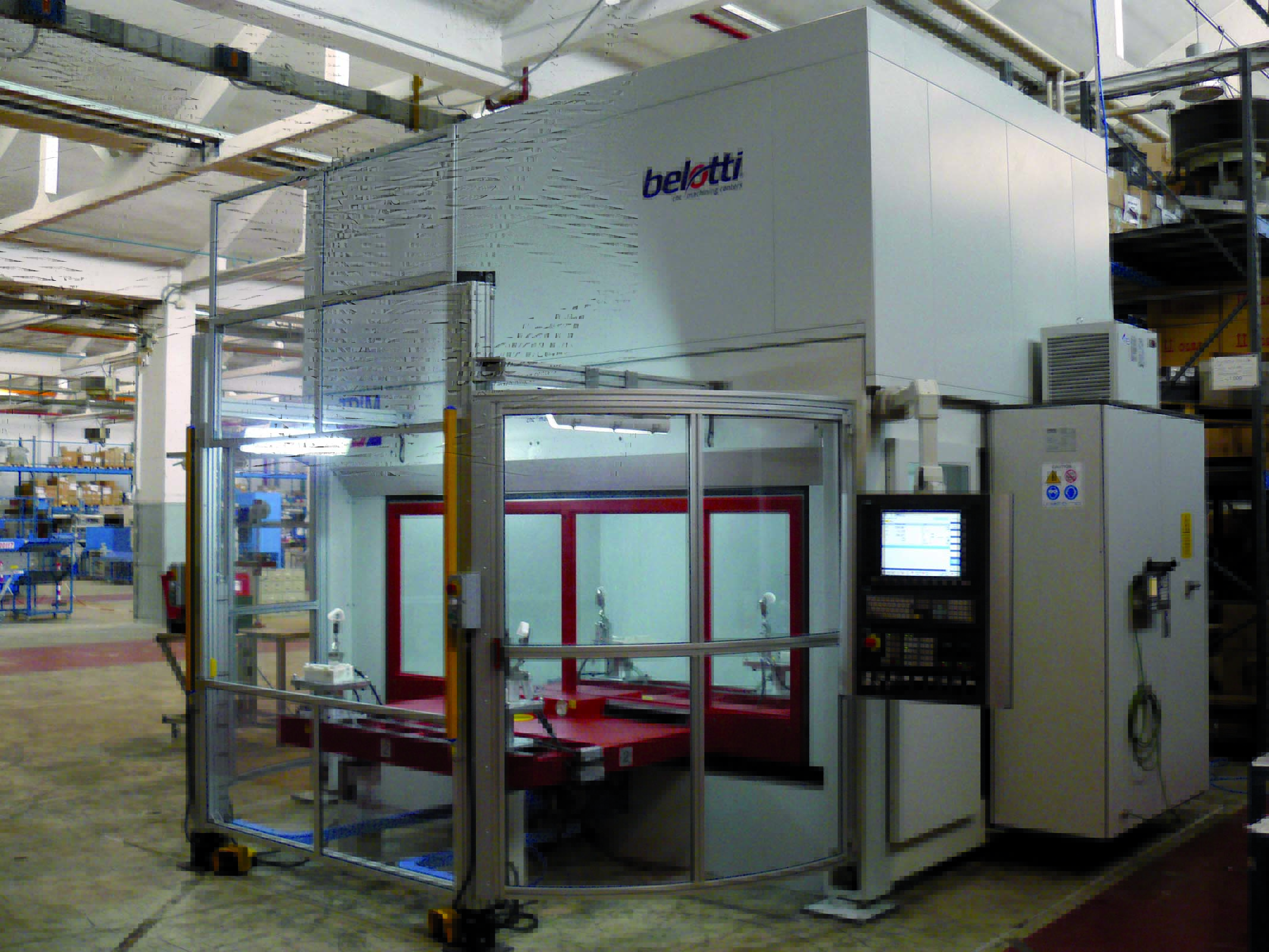

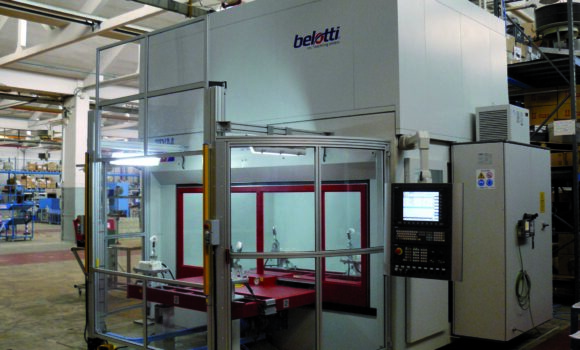

Centro di lavoro modello TRIM 2515 a doppio ponte
– Machining center model TRIM 2515 with double bridge
– Duoble heads with revolver machining unit
– Rotary table
– Strokes:

X₁ e X₂= 1.550 mm speed 80 m/min
Y₁ e Y₂= 1.600 mm speed 80 m/min
Z₁ e Z₂= 900 mm speed 60 m/min
A₁ e A₂= 315° speed 30rpm
C₁ e C₂= 270° speed 30 rpm
